Kenwood P-HD3FR

Details about the Kenwood P-HD3FR

TWO 2-CHANNEL POWER AMPLIFIERS, 6.5” FRONT SPEAKERS, 6X9” LID SPEAKERS, & CA-CUT14 CUT-IN LID KIT PACKAGE DESIGNED AND ENGINEERED FOR SELECT 2014-UP HARLEY-DAVIDSON® MOTORCYCLES

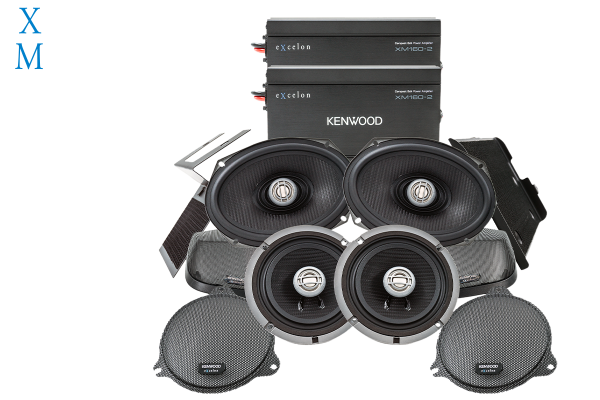

Products Included In Package

• Qty: 2 XM160-2

• Qty: 1 XM65F

• Qty: 1 XM69R

• Qty: 1 CA-CUT14

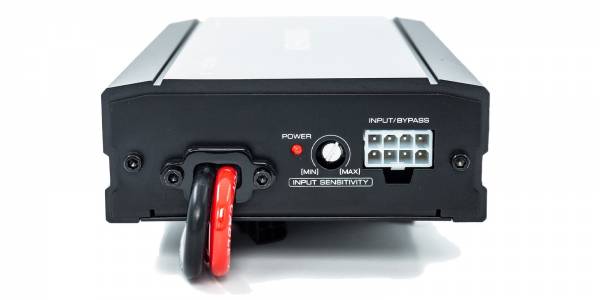

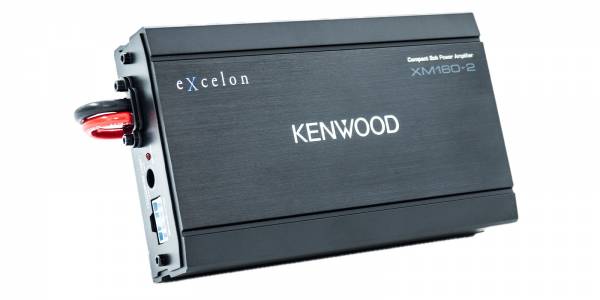

XM160-2

• Class D 2-Channel Power Amplifier

• 80W x 2 @ 2 ohms (RMS)

• No Radio Flash Required

• Bypass Port For System Expansion

• Street Glide®/Ultra® Mounting Plate

• Road Glide® Mounting Plate

• Plug & Play Power, Speaker, & Input Wiring

• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver

• Input Sensitivity Adjustment

• High Efficiency Design Will Not Overload HD Electrical Systems

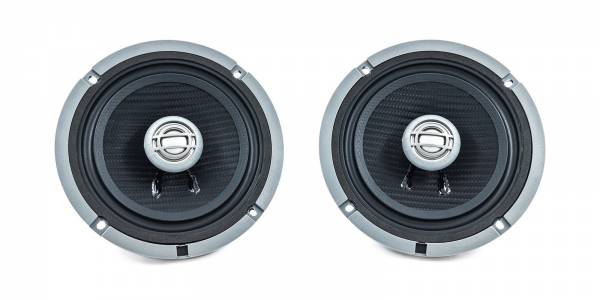

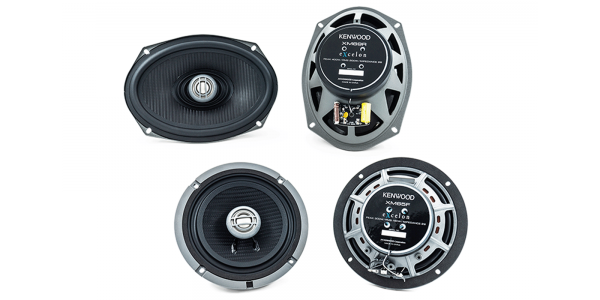

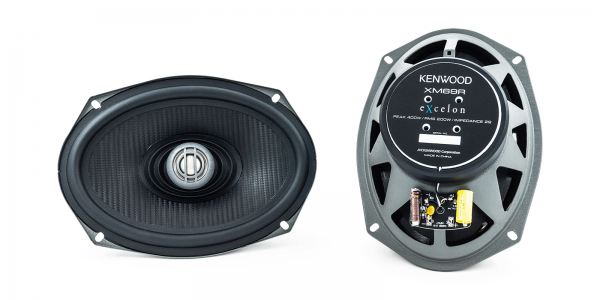

Speaker Features

• IMPP Woofer Cones

• 1” (PEI) Dome Tweeters

• Silicone Gaskets Included (XM69R)

• Sealed Design Will Not Allow Water To Pass Through Speaker (XM69R)

• Impedance: 2 Ohm » Mounting Depth: XM65F/XM69R 2.25”/2.925”

• Sensitivity: XM65F/XM69R 92/94dB

• Frequency Response: XM65F/XM69R 40-25kHz/ 20-25kHz

• RMS Power Handling: XM65F/XM69R 150W/200W

• Peak Power Handling: XM65F/XM69R 300W/400W

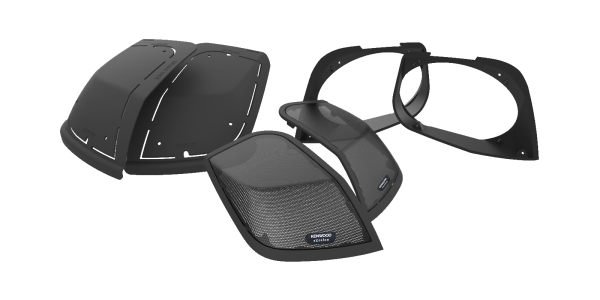

CA-CUT14

• Full Kit For Modifying HD Motorcycle Hard Saddlebag Lids for 6x9” Speakers

• Optimal Speaker Positioning

• Minimal Loss of Bag Space

• Built-in Water Drain Channels

BIKE FITMENT

• 2014-Current FLHX Street Glide

• 2015-Current FLTR Road Glide

• 2014-Current FLHTK Limited Ultra

• 2014-Current FLHTCU Ultra Classic

• 2014-Current FLHTCUG Tri Glide Ultra

• 2016-Current FLTRU Road Glide Ultra

• 2020-Current FLTRK Limited Road Glide Ultra

• 2018-Current FLHT Electra Glide Standard Fairing (with factory radio installed)

• This list is not conclusive. Products may fit additional bikes.
