Kenwood P-HD2R

Details about the Kenwood P-HD2R

2-CHANNEL POWER AMPLIFIER, 6X9” LID SPEAKERS, & CA-CUT14 CUT-IN LID KIT PACKAGE DESIGNED AND ENGINEERED FOR SELECT 2014-UP HARLEY-DAVIDSON® MOTORCYCLES

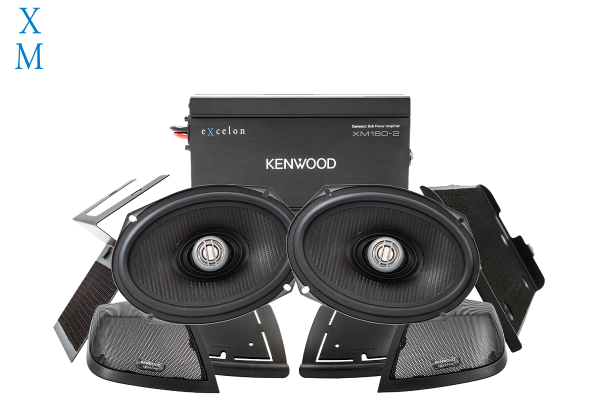

Products Included In Package

• Qty: 1 XM160-2
• Qty: 1 XM69R
• Qty: 1 CA-CUT14

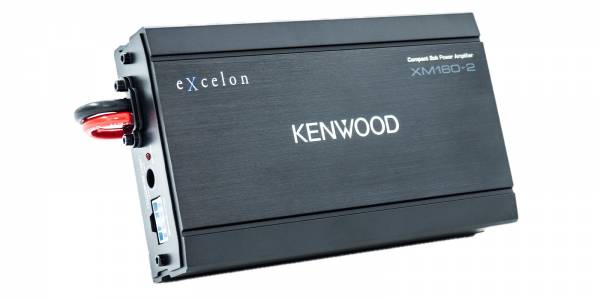

XM160-2

• Class D 2-Channel Power Amplifier
• 80W x 2 @ 2 ohms (RMS)
• No Radio Flash Required
• Bypass Port For System Expansion

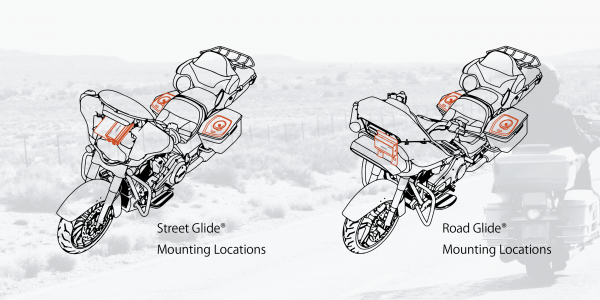

• Street Glide®/Ultra® Mounting Plate
• Road Glide® Mounting Plate
• Plug & Play Power, Speaker, & Input Wiring
• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
• Input Sensitivity Adjustment
• High Efficiency Design Will Not Overload HD Electrical Systems

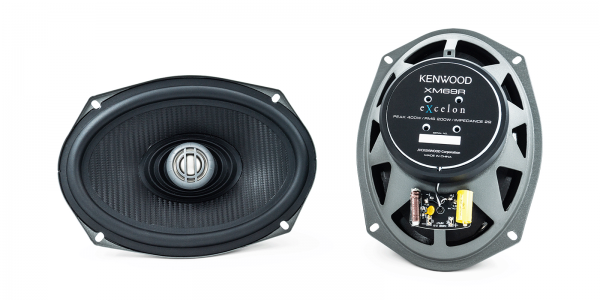

XM69R

• IMPP Woofer Cones
• 1” (PEI) Dome Tweeters
• Silicon Gaskets Included
• Sealed Design Will Not Allow Water To Pass Through Speaker
• Impedance: 2 Ohm
• Mounting Depth: 2.952”
• Sensitivity: 94dB
• Frequency Response: 20Hz-25kHz
• RMS Power Handling: 200W
• Peak Power Handling: 400W

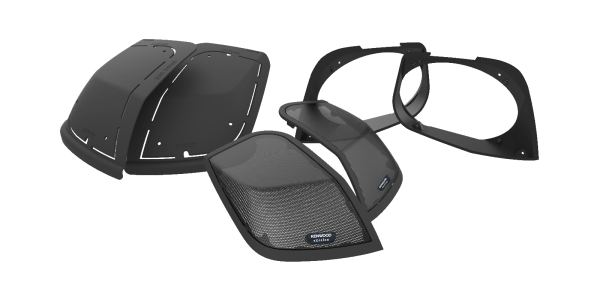

CA-CUT14

• Full Kit For Modifying HD Motorcycle Hard Saddlebag Lids for 6x9” Speakers
• Optimal Speaker Positioning
• Minimal Loss of Bag Space
• Built-in Water Drain Channels

2-Year Warranty for P-HD2R Package.

BIKE FITMENT

• 2014-Current FLHX Street Glide
• 2015-Current FLTR Road Glide
• 2014-Current FLHTK Limited Ultra
• 2014-Current FLHTCU Ultra Classic
• 2014-Current FLHTCUG Tri Glide Ultra
• 2016-Current FLTRU Road Glide Ultra
• 2020-Current FLTRK Limited Road Glide Ultra
• 2018-Current FLHT Electra Glide Standard Fairing (with factory radio installed)

This list is not conclusive. Products may fit additional bikes.
