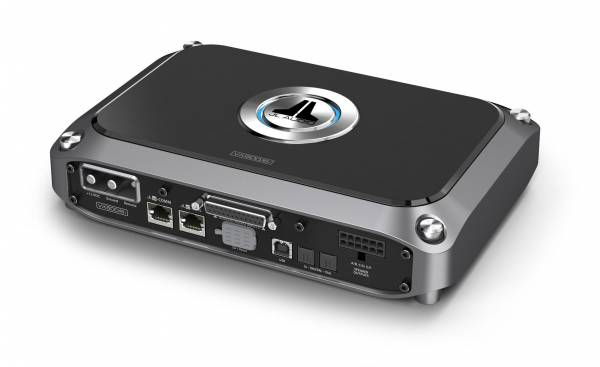

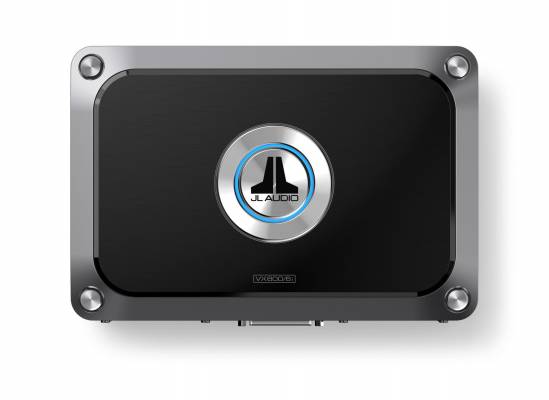

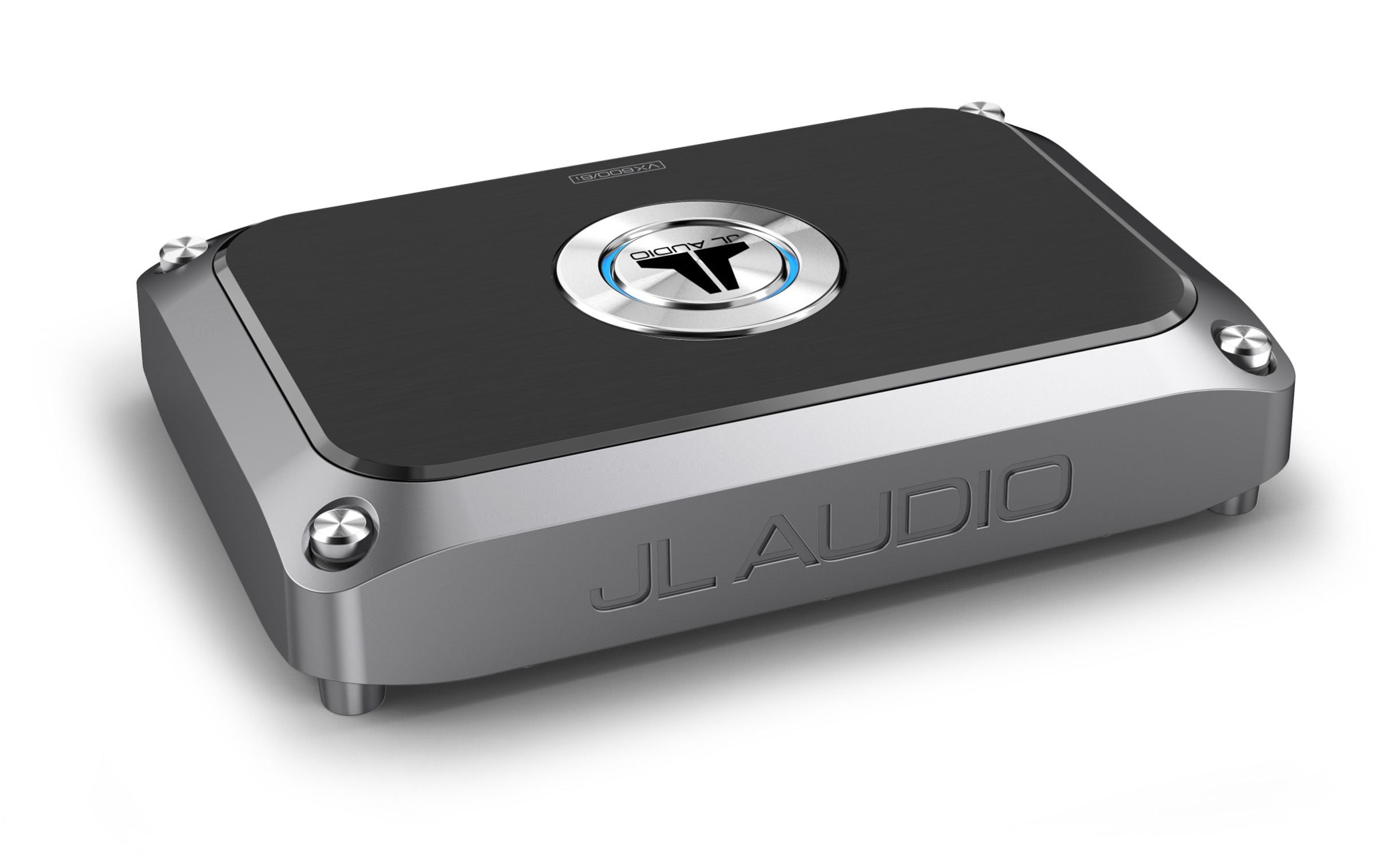

JL Audio VX600/6i

Details about the JL Audio VX600/6i

6-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable

Features:
Unprecedented, Onboard DSP Tuning Power!

• Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
• TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

• Advanced, high-speed switching technology delivers reference-grade power and efficiency.
• DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs


• Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
• Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
• Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
• Automatic turn-on options via signal-sensing or DC-offset sensing

JLid™ System Command and Control with Networking Capabilities

• Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:
