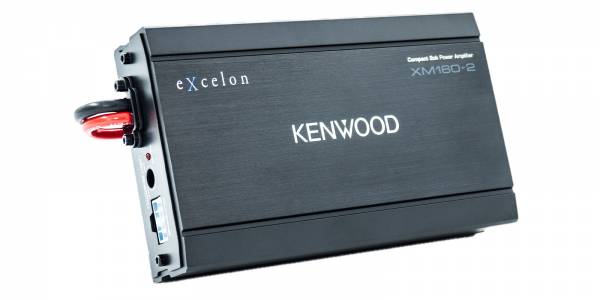

Kenwood XM160298

Details about the Kenwood XM160298

Designed and engineered for select '98-'13 Harley Davidson Motorcycles

FEATURES:

• Class D 2-Channel Power Amplifier

• 80W x 2 @ 2 ohms (RMS)

• No Radio Flash Required

• Bypass Port For System Expansion

• Plug & Play Power, Speaker, & Input Wiring

• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver

• Input Sensitivity Adjustment

• High Efficiency Design Will Not Overload HD Electrical Systems

• 2-Year Warranty

No Radio Flash Required
This amplifier is tuned for the best performance with a stock Harley Davidson® or aftermarket radio.

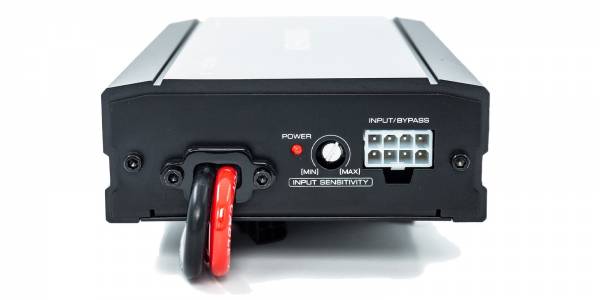

Input Sensitivity Setting

The input sensitivity adjustment exists to be able to properly level match an aftermarket receiver’s output if the OEM Harley Davidson® radio has been replaced (otherwise, we would have just removed and pre-set it!).

With an OEM Harley Davidson® radio, the input sensitivity should be set at just past the halfway point for optimal sound as shown in the picture above.

**Note** With this setting, the OEM Harley Davidson® radio can be turned up to 3 “clicks” from its max volume before the radio begins to distort.

Bypass Port For System Expansion
Easily add additional amplifiers by connecting to the input/bypass harness.

Built-in Voltage Monitoring Circuit
Automatically turns off the amplifier when the battery voltage drops below 10.5V

BIKE FITMENT

• 2006-2013 FLHX Street Glide

• 1998-2011 FLHTC Electra Glide Classic

• 1998-2013 FLHTCU Ultra Classic

• 2009-2013 FLHTCUG Tri Glide Ultra

• 1998-2011 FLHT Electra Glide Standard Fairing (with radio installed)

• 1998-2013 FLTR Road Glide*

• 2011-2013 Road Glide Ultra*

• This list is not conclusive. Products may fit additional bikes.
  *CA-PLT98RG Mounting Plate Required
